Regular price $21.00
/
Shipping calculated at checkout. This item typically ships in 1-2 Weeks

Color
Style
#SkyTrackerOrSkyGuiderPro

This adapter is designed to fit the:

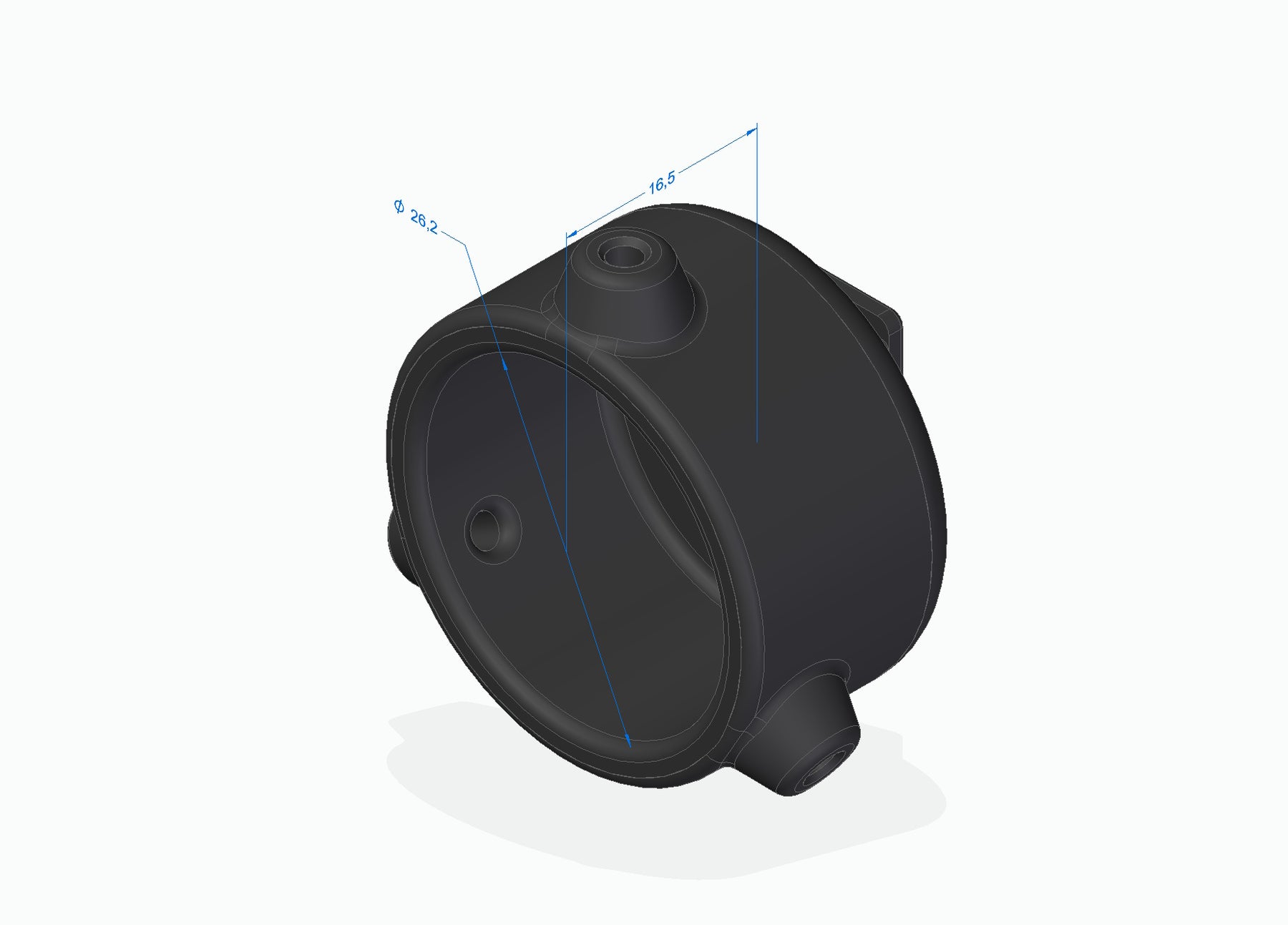

The internal diameter is 30.3mm. The depth is 17mm.

The mounting flange width is 22mm x 15.5mm. The depth (undercut) is 1.65mm, and the flange thickness is: 1.35mm.

#SkyWatcherOrMSM

This adapter is designed to fit the:

The Internal diameter is 30.3mm. The depth is 23mm.

#LensCap

This lens cap is designed to fit the:

The cap has a snug fit, and uses the rubber eye cup grip to hold in place.

Design:
#SkyTrackerOrSkyGuiderPro #SkyWatcherOrMSM

It may also fit other polar scopes, measure your scope to find out.

The adapter fits directly to the scope, there is no need to use a second adapter.
It secures to the polar scope using either three M3 x 6mm or #4 x 1/4" screws. (Not included)

I recommend using the 6mm thumbscrews that are normally sold for use with computer cases.

The easy way to install the screws is to drive them using a power drill, the spinning of the drill will heat the screw due to friction, and once heated they will self-tap the nylon plastic.

Each screw tightens up against a special internal nylon tab. This prevents metal-on metal contact or damage to the polar scope finish.

How Shapeways fulfillment Works:

Many items on this website are manufactured by Shapeways.com

The parts are professionally 3D printed, and then drop shipped to your address.

I cannot customize, alter or process any returns after your order has been placed. All sales are final.

Items destined for a US address are made in the USA either in Michigan or New York. International shipments may be produced in either the USA or Netherlands.



ZapWizard is the part designer. I receive a fixed portion of the total order.

Upon order you will receive a confirmation of the order, and a notification upon shipment. If you need more details on the state of an item please send me a message with the order number, or place your order directly on my Shapeways.com store.

All items in the US are shipped using UPS Mail Innovations. This means your shipment will be transferred your local carrier for final delivery. If you require faster shipping or international shipping: Please order directly from the Shapeways.com marketplace.

Shipping costs and any other related fees related to Shapeways are controlled by Shapeways.com. For more information please see the Shapeways.com page on shipping time and costs.

Shapeways.com provides a 10-day warranty for manufacturing defects. Please contact me as soon as possible if you have any defects such as a warped metal part, or heavily filled area. Please include your order number and a photo of the defective part.

Parts are made in Michigan, New York or the Netherlands depending on final shipping location.



About the material:
Made from flexible yet strong Nylon 12 plastic. The part is created using 3D printed laser sintered plastic. The result is a solid plastic component that is durable and long-lasting.

Like all nylon materials the part can absorb moisture. Care should be taken to prevent prolonged exposure to liquids. Dry the part as soon as possible to prevent warping.


Custom Colors:
If you want a color not available above: You can dye the parts using any colored permanent marker. Simply order the thumb tabs in white, and color them yourself. The surface is slightly porous and will hold color well. They may also be dyed using any fabric dye compatible with Nylon (Polyamide).

Material specs and MDS sheets located here.


Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Alan Woolnough
polar scope adapter

I struggled to find a right-angled finder for my iOptron Skyguider Pro, and had resigned myself to either continue struggling to view through my polar scope, or attempting to make my own {which became more tricky, the more i researched the idea}.
By chance i stumbled upon a ZapWizard video, which had exactly what i was looking for...and i ordered one straight away.
I already owned an old Olympus Varimagnifier R/A finder, which i was wanting to mount onto my polar scope, and hoped this adapter would fit this specific R/A finder...which it did {perfectly}.
I had already a small pack of 8mm M3 thumb-screws in a drawer, so i was able to attach the adapter to the scope immediately it arrived.
The adapter is excellent value for money, and very nicely made...and will certainly last me a very long time.
Because this adapter is NOT a thick-walled alloy tube, it should not be over tightened on the scope {to preserve the life of the internal threads}, but because it is very light, it is very secure with minimal tightening of the thumb screws.
I leave two of the thumb screws in their tightened position all the time, and just use the third thumb screw for tightening and un-tightening the adapter, when needing to use the polar scope/ adapter combination.
Certainly one of my very best accessory purchases.

d
dave milner
small things add up

The adaptor is sturdy and well made. Good fit on both the 90 degree adaptor and the scope. Glad I picked red, more visible at night.
