Holster for the Leatherman ARC - Open Face
Regular price $60.00 Sale price $45.00
Shipping calculated at checkout.
This item typically ships in 1-2 Weeks
New lower prices. (Grey color only)
The text below changes depending on your selections
Open Face Version

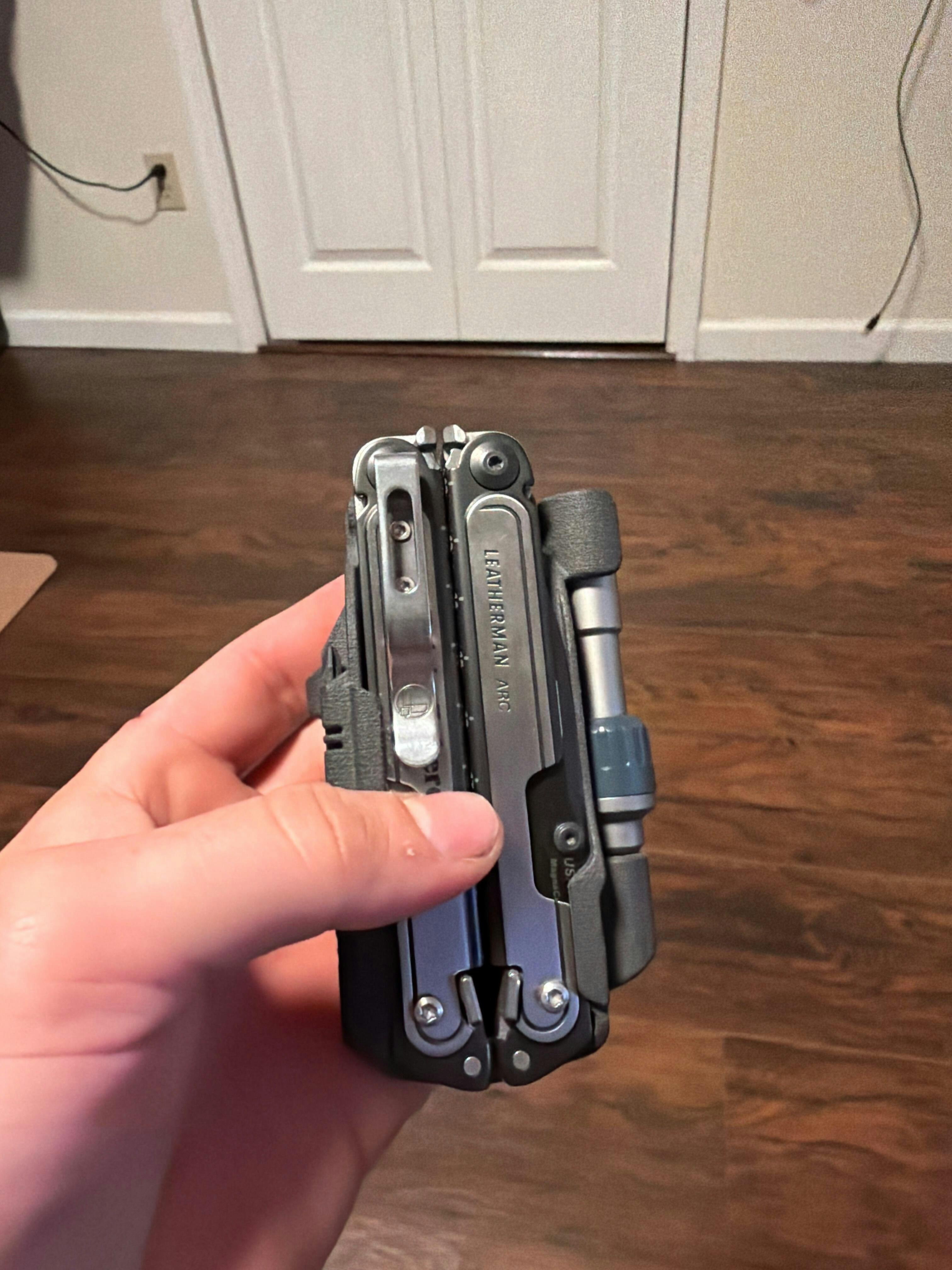

- The face of the tool exposed for a unique and stylish look.
- A channel down the center allows you to remove the tool using just one hand.
- Compatible with the ARC belt clip, if it is moved to the blade side of the tool.
- Also compatible with the FREE P4 (Without the belt clip)
- Compatible with the PC Poodle Flashlight Backpack (But not with both the belt clip and light)
- Also available for left hand modified tools. Message me for details.
Note: The description, image and price change based on the selected options.
#BDULoop
BDU Loop
- 48x5mm (1.9x0.2in) closed belt loop.
- 7 Bit holders on the back
- Closed loop is stronger than open clip.
- Fits regular, and Air Force DLATS Belts (BDU) style belts.
- Also attaches to PALS webbing. MOLLE Compatible.
- Features keyhole for hanging on a hook/nail.
#DutyLoop
Duty Loop
- 58x7mm (2.28x0.27in) closed belt loop.
- 6 Bit holders on the back
- Fits large, and Duty style belts.
- Also attaches to PALS webbing. MOLLE Compatible.
- Features keyhole for hanging on a hook/nail.
#HorizontalLoop
Horizontal Carry Loop
- 48x5mm (1.9x0.2in) closed horizontal belt loop
- No bit holders on the back
- Left or right hand carry
- Fits regular, and Air Force DLATS Belts (BDU) style belts
- Two bit holders on one side (More if no extender option is selected)
#ThirdPartyClipCompatible
Third Party Clip Compatible:
- Belt clips sold separately
- Top-mount Chicago screw hole placement.
- Can also attach to other third party clips that have in-line holes.
- #8 Chicago screw holes fits third party clips.
- Hole and slot spacing from 0.5” to 1.3”
- 7 Bit holders on the back
#NoneSlim
Slim, no side grips option:
- No side grips or side bit holders
- Slimmer overall profile
#WithSideGrips
Side Grip options:
- Important: To remove the side tool; Pull straight up until loose. Not out to the side.

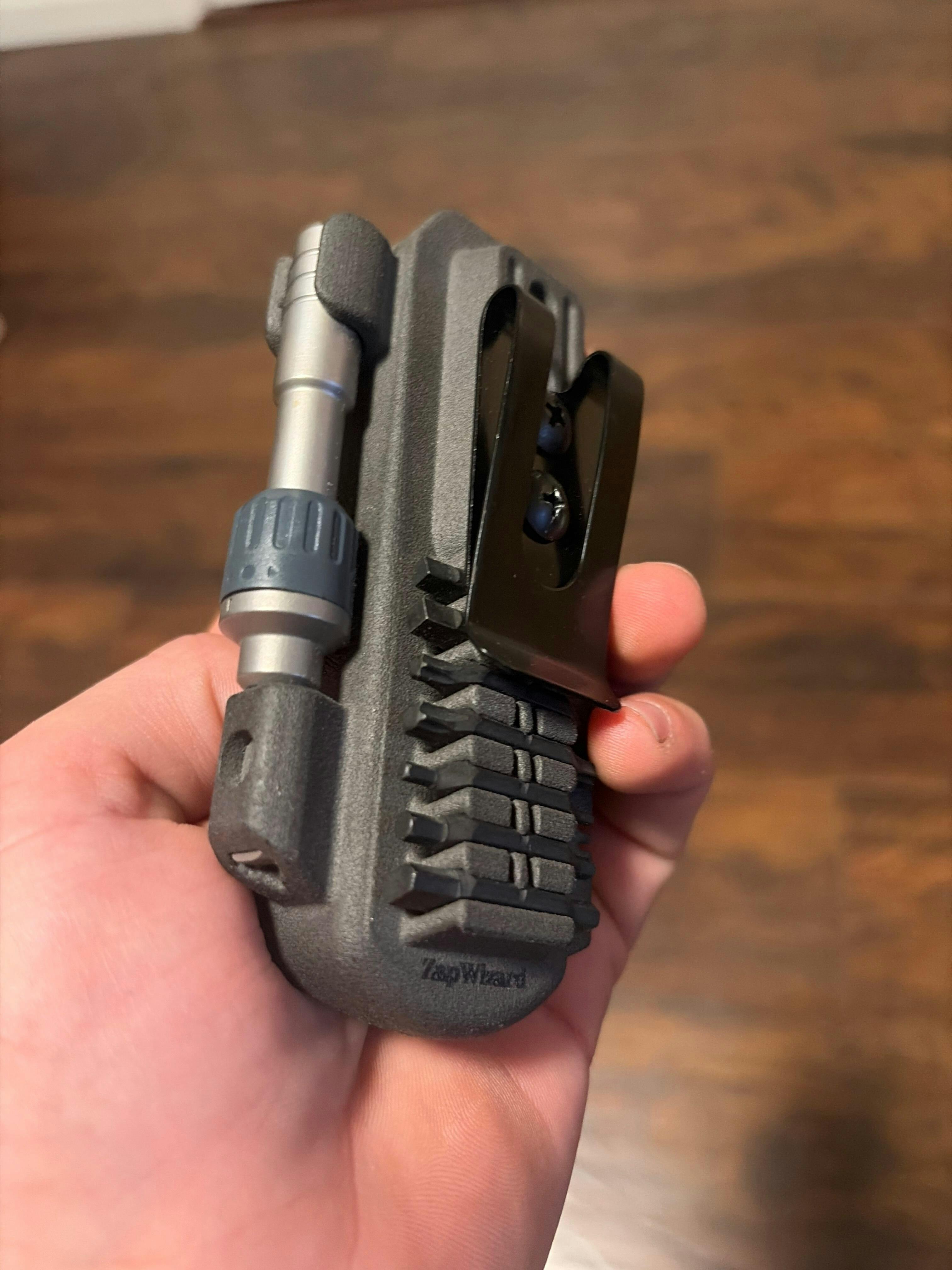

- Holder for the Leatherman Ratchet, Bit Extender, or 711L Flex Head on the side
- The other side holds up to 4 extra bits
- Can also hold the 711L ratchet wrench
- Can also hold the Volty Bit or the Volty Switch
- The fit will be tight at first, but wear in with use.
#SlimNoSideGrips
Slim, no side grips option:
- No side grips or side bit holders
- Slimmer overall profile
#All
Features:
- Ultra slim and light design.
- Multiple attachment styles available.
- The tool is is held in place using the two spring-loaded release tabs built into the multitool.
Regarding the Pocket Clip:
The holster is compatible with the pocket clip still attached to the ARC, but it must be moved to the blade side of the tool. Or add my Barnacle Bit Holder to hold one more bit.
If you do wish to remove the pocket clip from the Leatherman ARC you need a Torx T6 driver.
If you wish: can then fill in the holes left behind by using two tiny #2-56 x 1/16"L Set Screws.
What am I getting / not getting?:
Included:
● One (1x) 3D printed belt holster made from Nylon 12
Not included:
● Tool or other accessories.
● Accessories are shown in the images only as example use case only.
#ThirdPartyClipCompatible
● Metal Clip or Chicago Screws
- The natural color of the Nylon 12 SLS power is gray.
- This material will darken slightly and smooth out with use.
- Dying may be added for an additional cost (Click here).
The nylon material can be dyed or painted.
- Dying:
- Rit Dye or any Nylon fabric dye may be used.
- It is not possible to make the colors brighter with dye.
- Black, Dark green, Dark Red, Dark blue may be achieved
- Painting:
- Any plastic compatible paint may also be used, apply in very thin light coats until completely covered. Heavy application may affect tolerances.
- I have found Ace Hardware Matte Enamel paints to work particularly well.
Natural grey color -vs- black dyed
Most 3D printed parts are printed on demand
The process:
Batches of up to 15 holsters or other similar sized items are printed, taking up to 20 hours per batch. The parts are then cleaned, and made ready for packing.
The material:
Professionally 3D printed SLS Nylon 12 Plastic.
- Solid part, no hollow or plastic toy feel
- Material is flexible and water resistant
- Durable and long lasting
- Temperature and chemical resistant
- Ductile and environmentally stable
- Skin safe
Don't know what belt option is right for you?
BDU Loop:
- Opening size: 48x5mm or 1.9" x 0.2"
- A closed oblong shaped loop
- This fits most regular open ended belts
- Fits regular Air Force DLATS belts
Duty Loop:
- Opening size: 58x7mm or 2.28" x 0.27"
- A closed oblong shaped loop
- This fits most police style duty belts
- Also fits extra thick belts or many belts with dual clasps. (Groove belts or similar)
Horizontal Carry Loop:
- Same specifications as the BDU loop.
Third Party Clip Compatible:
- Designed to allow a separate belt clip product to be attached to the holster.
- A hole and slot configuration
- Hole and slot spacing from 0.5” to 1.3”
- Fits #8 Chicago screws
- Most clips require a 1/8" long screw/nut configuration
- I sell various compatible clips:
Tek-Lok Compatible:
- Similar to Third Party except with more room on the back for larger Tek-Lok products.
